3D Imaging Solution for Body, Breast, and Face. Complete with dedicated imager viewer and software.

Capture face, breast, and body images in ultra-high resolution 3D, and show your patients the exciting possibilities of their simulated aesthetic procedures. Now with 360° body imaging and circumferential measurements.

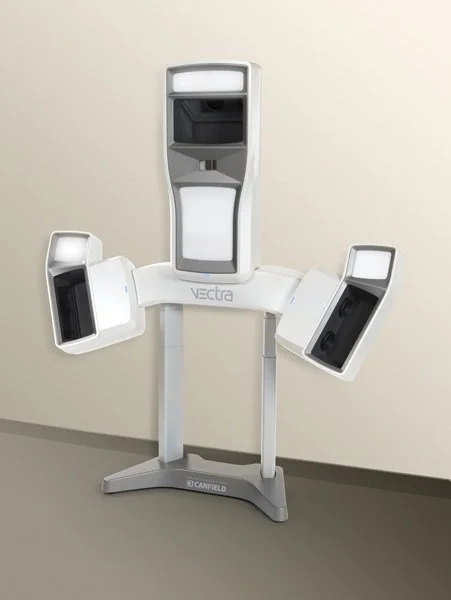

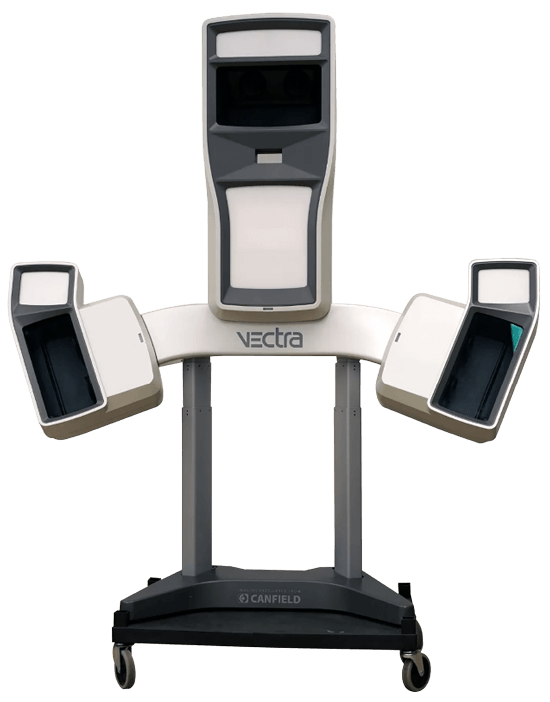

A single system to capture 3D face, breast, and body images

With ultra-high resolution color image capture, VECTRA XT assures razor sharp definition of the smallest details.

Its elegant design complements your space. With a wall projection of less than 17", it takes up hardly any floor space.

Proprietary lighting system automatically adjusts for optimal face, breast and body imaging. Compact design projects less than 17 inches from the wall.

Capture time of 3.5 milliseconds makes the VECTRA system immune to subject movement. Software controlled height adjustment for fast accurate positioning.

Engage in a streamlined, persuasive consultation as you view the three-dimensional image from any angle, zoom in for a closer look, superimpose the simulation over the pre-op, compare side-by-side, or fade between the two.

Communicate the possibilities

  • Increased patient referrals and drive greater media exposure with state-of-the-art assessment tools and realistic 3D results.

  • Use your patient's own image to explore possible outcomes, educate them about their options, explain limitations, and set appropriate expectations.

  • Show the difference between the likely outcome of a single procedure or by combining multiple procedures.

  • Visualise your patient's expectations, arrive at a shared understanding of treatment objectives, and help your patient decide on the best possible treatment plan.

  • A front and back view of the patient are automatically stitched together into a single, seamless wraparound image, providing a more complete visualization of the structural and aesthetic appearance of a patient's body.

  • Select breast implants from the product catalogs you normally use.

  • The Mastopexy interface in Breast Sculptor® closely models the way you perform surgery, including adjustable incisions used to simulate the excising of skin.

  • The Patient Education module provides a series of checklist-style customisable disclaimers with relevant visual tools and measurements to streamline your informed consent process.

  • Your practice is listed in the SculptMyDream® doctor locator (www.sculptmydream.com), so that women who are exploring breast augmentation surgery can find you quickly and easily.

Access, educate and simulate outcomes

  • Using 3D technology, help your patients understand their current condition.

  • Visualise the degree of contour change with a colour distance map and one-click volume difference measurement.

  • Slider-based dorsal height adjustment for instantaneous three-dimensional rhinoplasty simulation.

  • Breast Sculptor’s® new Revision tool provides slider-based controls to simulate the replacement of current implants with new larger implants. Volume can be adjusted independently for each breast, or linked for matching changes.

  • Compare multiple implant scenarios with different size, style and shape options.

  • Canfield Imaging Systems is making every effort to develop software that integrates easily into a HIPAA-compliant practice and to assist our customers in complying with HIPAA.

  • Reveals contours without colour distraction, presenting opportunities for corrective procedures.

  • Separates the unique colour signatures of Red and Brown skin components for unequalled visualisation of skin conditions.

  • Automated circumference and volume measurements for body contouring, only possible with 3D technology and 360° imaging.

  • Generate actual 3D models of the implants you select and calculates a realistic outcome based upon gravity, the shape and placement of the selected implant.

  • Overlaying her pre-op image with the simulated outcome makes the differences more apparent.

  • The ViewMyConsult® patient portal gives your patients secure access to their VECTRA 3D images, and your treatment recommendations, with a single click. Now with one step integration of ASAPS Smart Beauty Guide electronic procedural brochures.

  • Markerless Tracking provides a dynamic assessment of skin surface changes. Skin surfaces are automatically aligned, tracked and mapped.

  • Simulate removing or adding volume.

  • Visualise your patient's hopes and expectations with Sculptor's powerful viewing tools.

  • Help your patient decide on the best possible treatment plan by showing the difference between the likely outcome with single or multiple procedures.

  • Unlimited technical support, hardware warranty, training webinars, software upgrades and ViewMyConsult® access.

Technical specifications

    • 1.2 mm geometry resolution - face captures (triangle edge length)

    • 3.5 milliseconds capture time

    • On-board modular, intelligent flash units

    • Stereophotogrammetry technology

    • Floor stand with motorized lift to adjust for patient height

    • Dell computer and flat panel display

    • VECTRA Capture Module

    • Face Sculptor®

    • Breast Sculptor®

    • Body Sculptor®

    • Skin Analysis Sculptor (optional)

    • RBX® image processing

    • VECTRA® 3D Analysis Module

    • Mirror® PhotoFile®

    • Mirror® PhotoTools

    • 110-120V AC, 50/60 Hz, 5.0A or

    • 220-240V AC, 50/60 Hz, 5.0A

    • Configured and supplied by Canfield. Computers from other suppliers are not supported.

    • Operating system:

      • Windows 10 Professional 64 bit (Recommended) or Windows 11 Professional 64 bit

      • NOT SUPPORTED: Windows Home Edition and Windows 7

    • Processor: Intel Core i7 10th Gen (or higher)

    • System memory (RAM): 16 GB or higher

    • Minimum 2 GB available disk space for installing application

    • Minimum 1 TB available disk space recommended for data

    • Graphics card:

      • 2 GB dedicated memory minimum (4 GB Highly Recommended)

      • Dedicated nVidia or AMD cards (nVidia Highly Recommended)

      • Driver: latest available

      • 3.0 or later Open GL

    • USB Ports: 2 dedicated ports (USB 2.0)

    • Display: 1920 x 1080 (FHD) minimum; 3840 x 2400 (4K) maximum

    • Microsoft Security Essentials anti-virus software recommended

    • Wired printers (recommended for speed)

    • 1 Gbps Ethernet connection for networking - remote DB access not supported over Wi-Fi

    • Minimum support of 802.11n or later protocol by the intra-office Wi-Fi router

    • Requires iPad capable of running the current version of iOS

    • Windows Server 2016 64-bit and 2019 64-bit

    • Microsoft SQL Server 2017 and 2019 (Express edition is installed by default)

    • 2.2 GHz or faster processor

    • 16GB system memory (RAM)

    • 1 Gbps wired LAN connectivity (Wi-Fi not supported)

    • 1 Terabyte HDD, minimum. Space required is dependent upon patient volume, camera used, and settings.

    • RAID 1 - NOT SUPPORTED

    • Regularly scheduled backups are highly recommended.

    • We do not support using a server class OS as a workstation.

    • WAN Connectivity is NOT supported.

    • Workstation based cloud licensing
