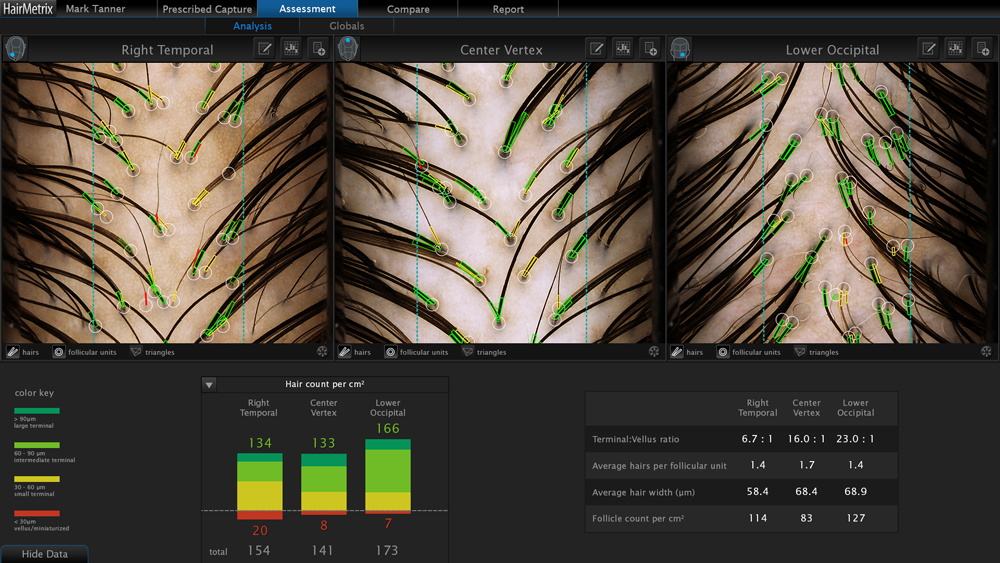

The first AI-driven non-invasive hair consultation. HairMetrix uses a dedicated cloud based application for image analysis and results feedback

This fully automated real-time analysis requires no hair clipping and allows for appropriate treatment plans and objective outcome monitoring to be easily communicated to your patients.

The unique benefits of Hairmetrix

  • Fully automated unclipped analysis

  • Follicular unit vellus and terminal ratio

  • Objective outcome tracking

  • Uses latest AI algorithms

  • Easy photography by office staff

  • No special scalp or hair preparation

  • Immediately convert patients to hair services

  • No outside lab required

  • Brilliant epiluminescence microscopy. Clinical images in 5MP quality.

  • A live image is displayed during the examination. It can be magnified, saved, analysed, and assigned directly from the camera without a mouse or keyboard.

  • Clear printed reports customized with your practice branding.

  • Unlimited technical support, hardware warranty, training webinars, and software upgrades.

Technical specifications

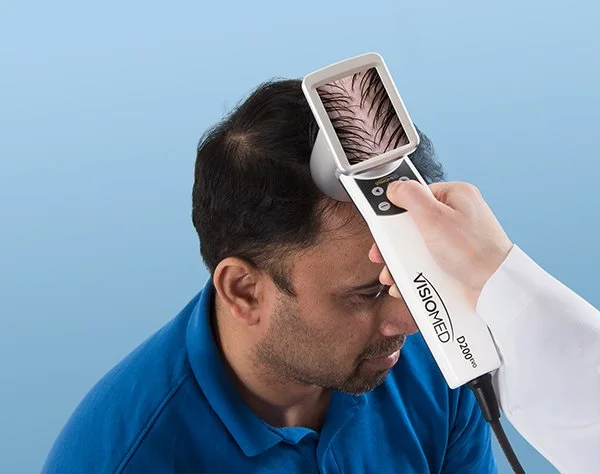

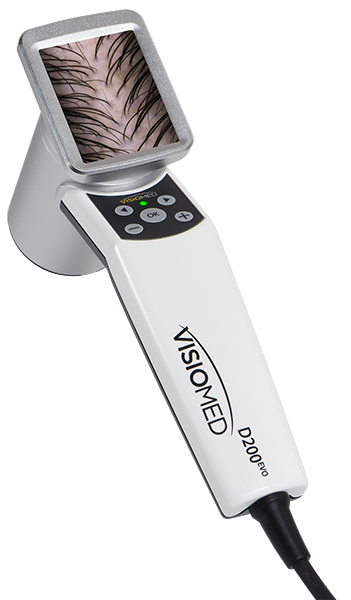

    • VISIOMED D200EVO dermatoscope

    • Front attachment, large with glass

    • Front attachment, small with glass

    • Front attachment, polarisation

    • Base unit: 300 x 300 x 110 mm, 1650g

    • Hand-held unit: handle length 150 mm; cylinder, length: 110 mm; cylinder diameter: 58 mm, 500g

    • Total weight: 2150g

    • 100-120V AC, 50/60 Hz, 15va or

    • 220-240V AC, 50/60 Hz, 20va

    • Operating system:

      • Microsoft Windows 10 or 11 Professional or Ultimate, 64 bit

      • NOT SUPPORTED: Windows Home Edition and Windows VISTA

    • Processor: Intel Core i7 10th Gen (or higher) - AMD CPU's not supported

    • System memory (RAM): 16 GB or higher

    • Minimum 1 GB available disk space for installing application

    • 1 TB available disk space recommended for data

    • Graphics card: (If using HairMetrix only, no graphics card needed)

      • 2 GB dedicated memory minimum (4 GB Highly Recommended)

      • Dedicated nVidia or AMD cards (nVidia Highly Recommended)

      • Driver: latest available

      • 3.0 or later Open GL

    • USB Ports: 2 dedicated ports (USB 2.0)

    • Display: 1920 x 1080 (4K monitors not currently optimized)

    • Microsoft Security Essentials anti-virus software recommended

    • Wired printers (recommended for speed)

    • 1 Gbps Ethernet connection for networking. WiFi not supported

    • Minimum support of 802.11n or later protocol by the intra-office Wi-Fi router

    • Requires iPad capable of running the current version of iOS

    • Windows Server 2016 64-bit and 2019 64-bit

    • Microsoft SQL Server 2017 and 2019 (Express edition is installed by default)

    • 1 Gbps wired LAN connectivity (Wi-Fi not supported)

    • 1 Terabyte HDD recommended. Space required is dependent upon patient volume, camera used, and settings.

    • RAID 1 - NOT SUPPORTED

    • Regularly scheduled backups are highly recommended

    • We do not support using a server class OS as a workstation.

    • WAN Connectivity is NOT supported.
