Automated total body imaging with integrated body mapping

The new 3rd generation IntelliStudio G3 sets the highest standard for image quality that rivals dermoscopy.

Motorized programmable lift ensures repeatable camera positions and lighting.

Standardized templates control camera settings and guide patient poses.

Automated sequencing guides the user through captures - no special photography skills needed.

Non-polarized and cross-polarized lighting reveals skin features. Both lighting modes are captured sequentially in less than a second, enabling perfect registration.

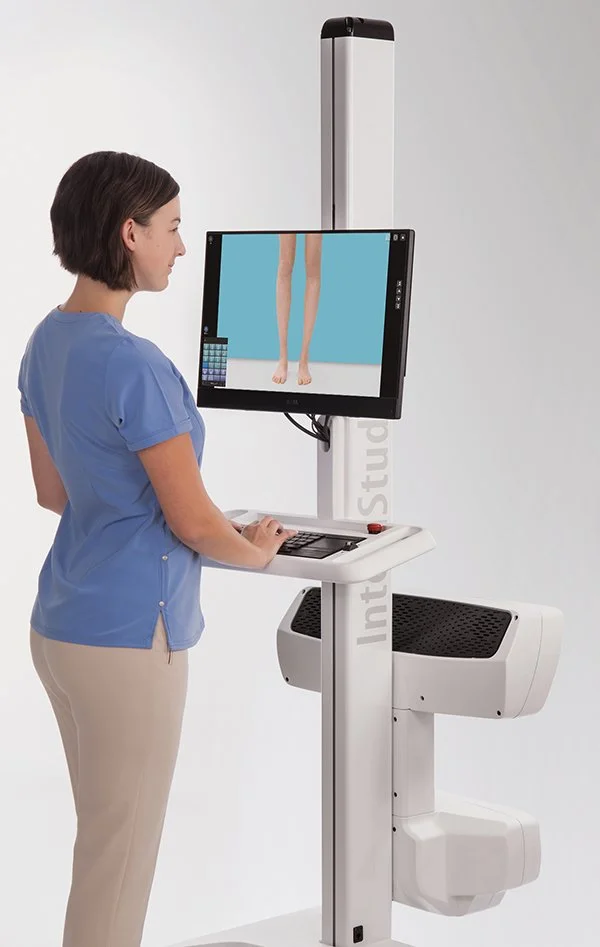

Fully automated capture of body map photos DermaGraphix capture templates control camera settings and guide patient poses, while the motorized programmable lift ensures repeatable camera positions and lighting for consistent whole body photography with minimal staff training.

Technical specifications

    • 100-120V AC, 50/60 Hz, 10.0A or

    • 220-240V AC, 50/60 Hz, 10.0A

    • Class I Laser

    • IEC 60825-1:2014

    • Max output of laser radiation is less than 10mW

    • Configured and supplied by Canfield. Computers from other suppliers are not supported.

    • IntelliStudio® Capture Module

    • DermaGraphix® Module

    • Mirror® PhotoFile®

    • Mirror® PhotoTools

    • Miminum support of 802.11n or later protocol by the intra-office Wi-Fi router

    • Requires iPad capable of running the current version of iOS

    • Mirror desktop software running on Windows OS is required to support Mirror iPad app database

    • Windows Server 2016 64-bit and 2019 64-bit

    • Microsoft SQL Server 2017 and 2019 (Express edition is installed by default)

    • 2.2 GHz or faster processor

    • 16GB system memory (RAM)

    • 1 Gbps wired LAN connectivity (Wi-Fi not supported)

    • 1 Terabyte HDD, minimum. Space required is dependent upon patient volume, camera used, and settings.

    • RAID 1 - NOT SUPPORTED

    • Regularly scheduled backups are highly recommended.

    • We do not support using a server class OS as a workstation.

    • WAN Connectivity is NOT supported

    • Workstation based cloud licensing
