3D solution for face, breast and body. Complete with dedicated imager viewer and software.

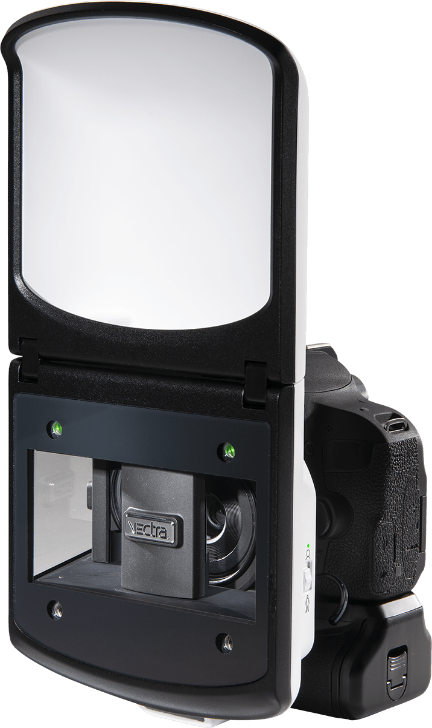

The VECTRA® H2 offers an all-in-one portable lightweight 3D imaging solution ideal for facial, breast and body aesthetics. Delivering precision optics for high-resolution 3D images, the intuitive system is easy-to-handle and ready to use with minimal staff training.

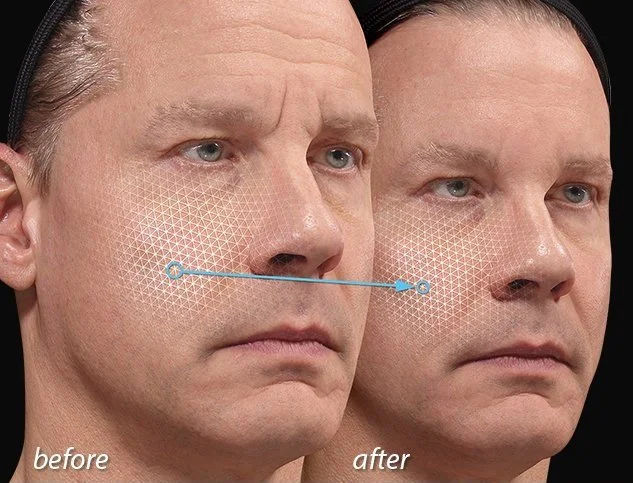

Canfield's Markerless Tracking technology quantifies soft tissue dynamics, assessing stretch, compression, lift, and volumization without markers. It analyzes skin movement in detail, aligning, tracking, and mapping surfaces automatically. This precision aids current treatments and promises improved future strategies.

The system enables physician review of outcomes, refining treatment techniques. Leveraging Markerless Tracking data, medical professionals improve intervention effectiveness, enhancing patient care. This integration of technology and medical expertise optimizes outcomes and treatment experiences.

Automated Markerless Tracking provides a dynamic assessment of skin surface changes

  • Identifies, analyses, and displays results for Spots, Wrinkles, Texture, Pores, Brown Spots, and Red Areas. Graphs depict the calculated score for each feature.

  • Intuitive interface including slider-based adjustments for instantaneous three-dimensional rhinoplasty simulation.

FACE Sculptor®

  • Using 3D technology, help your patients understand their current condition.

  • New in 8.4, the first ever use of A.I. in the VISIA Experience. The new wrinkle algorithm significantly improves detection and accuracy of fine lines and wrinkles.

  • Reveals contours without colour distraction, presenting opportunities for corrective procedures.

  • Simulate adding or removing volume.

  • Separates the unique colour signatures of Red and Brown skin components for unequalled visualisation of skin conditions.

  • Help your patient decide on the best possible treatment plan by showing the difference between the likely outcome with single or multiple procedures.

  • Using 3D technology, help your patients understand their current condition.

  • The Mastopexy interface in Breast Sculptor® closely models the way you perform surgery, including adjustable incisions used to simulate the excising of skin.

BREAST Sculptor ®

  • Select breast implants from the product catalogs you normally use.

  • Revision provides sliders to simulate replacement of current implants with new larger implants. Adjust volume independently for each breast, or linked for matching changes.

  • Generate actual 3D models of the implants you select and calculates a realistic outcome based upon gravity, the shape and placement of the selected implant.

  • The Patient Education module provides a series of checklist-style customisable disclaimers with relevant visual tools and measurements to streamline your informed consent process.

  • Compare multiple implant scenarios with different size, style and shape options.

  • SculptMyDream® doctor locator (www.sculptmydream.com), lists your practice so that women who are exploring breast augmentation surgery can find you quickly and easily.

  • Automated circumference and volume measurements for body contouring, only possible with 3D technology and 360° imaging.

BODY Sculptor®

  • Simulate removing or adding volume.

  • Visualise the degree of contour change with a colour distance map and one-click volume difference measurement.

  • Help your patient decide on the best possible treatment plan by showing the difference between the likely outcome with single or multiple procedures.

Technical specifications

    • Capture Volume

      • Face capture: 320mm (H) x 180mm (W) x 200mm (D)

      • Body capture: 700mm (H) x 410mm (W) x 400mm (D)

    • 2.0 milliseconds capture time

    • Stereophotogrammetry technology

    • 3D Resolution (triangle edge length)

      • Face capture: 1.2mm

      • Body capture: 3.5mm

    • Multiple image stitching capability

    • On-board modular, intelligent flash unit

    • Dual Ranging lights for easy patient positioning (Face and Body)

    • SD Memory Card

    • (4) Batteries and (2) chargers

    • USB Cable

    • Soft carrying case

    • Computer (optional)

    • Printer (optional)

    • VECTRA Capture Module

    • VECTRA Analysis Module

    • Mirror® PhotoFile®

    • Mirror® PhotoTools

    • Face Sculptor® (optional)

    • Skin Analysis Sculptor (optional)

    • Breast Sculptor® (optional)

    • Body Sculptor® (optional)

    • 100-120V AC, 50/60 Hz, 15va or

    • 220-240V AC, 50/60 Hz, 20va

    • Operating system:

      • Windows 10 Professional 64 bit (Recommended) or Windows 11 Professional 64 bit

      • NOT SUPPORTED: Windows Home Edition and Windows 7

    • Processor: Intel Core i7 10th Gen (or higher)

    • System memory (RAM): 16 GB or higher

    • Minimum 1 GB available disk space for installing application

    • 1 TB available disk space recommended for data

    • Graphics card:

      • 2 GB dedicated memory minimum (4 GB or higher Recommended)

      • Dedicated nVidia or AMD cards (nVidia Highly Recommended)

      • Driver: latest available

      • 3.0 or later Open GL

    • USB Ports: 2 dedicated ports (USB 2.0)

    • Display: 1920 x 1080 (FHD) minimum; 3840 x 2400 (4K) maximum

    • Microsoft Security Essentials anti-virus software recommended

    • Wired printers (recommended for speed)

    • 1 Gbps Ethernet connection for networking - remote DB access not supported over Wi-Fi

    • Windows Server 2016 64-bit and 2019 64-bit

    • Microsoft SQL Server 2017 and 2019 (Express edition is installed by default)

    • 1 Gbps wired LAN connectivity (Wi-Fi not supported)

    • 1 Terabyte HDD recommended. Space required is dependent upon patient volume, camera used, and settings.

    • RAID 1 - NOT SUPPORTED

    • Regularly scheduled backups are highly recommended

    • Operating system: macOS Ventura or Sonoma

    • Processor: Apple M1 (or higher) or Intel Core i7 10th Gen or higher

    • System memory (RAM): 16 GB (or higher)

    • Minimum 2 GB available disk space for installing application

    • Minimum 500 GB available disk space recommended for data (1TB or higher recommended for capturing to local database)

    • Graphics card: M1, or Intel Graphics (AMD dedicated graphics recommended for Intel Processor models)

    • USB Ports: 1 USB-C port required

    • Display: 13-inches or larger with resolution of 1920 x 1080 or greater

    • Optional: 1 Gbps wired LAN connectivity connectivity (remote DB access not supported over Wi-Fi)

    • Optional: SD Card reader for SD Card capture mode

    • Windows or Mac based server that meets Minimum Computer Recommendation

    • macOS:

      • MySQL version 8.0.33

    • Windows OS:

      • Windows Server 2016 64-bit and 2019 64-bit

      • Microsoft SQL Server 2019 (Express edition is installed by default)

    • 1 Gbps wired LAN connectivity (Remote Database access over Wi-Fi not supported)

    • 1 Terabyte HDD recommended. Space required is dependent upon patient volume, camera used, and settings.

    • RAID 1 - NOT SUPPORTED

    • Regularly scheduled backups are highly recommended

    • Minimum support of 802.11n or later protocol by the intra-office Wi-Fi router

    • Requires iPad capable of running the current version of iOS

    • Mirror desktop software running on Windows OS is required to support Mirror iPad app database

    • We do not support using a server class OS as a workstation.

    • WAN connectivity is NOT supported. 1Gbps connection required.

ViewMyConsult

ViewMyConsult® web portal helps you stay connected to your patients as they consider the possibilities of aesthetic procedures.

By accessing a secure, password-protected web portal, patients can view their 3D pictures in the privacy of their own home. Your patient can take it all home with ViewMyConsult and personalized printed reports.
